Details

  • •Circuit breakers and fuses

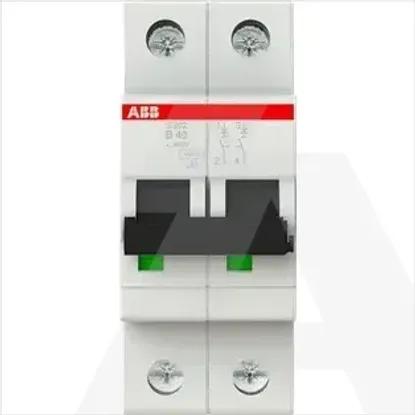

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Built-in depth69mm
Voltage typeAC/DC
Connectable conductor cross section solid-core0 - 35mm²
Suitable for flush-mounted installationNo
Over voltage category3
Connectable conductor cross section multi-wired0 - 25mm²
Degree of protection (IP)IP20
Width in number of modular spacings2
Pollution degree3
Number of protected poles2
Concurrently switching neutral conductorNo
Rated insulation voltage Ui440V
Current limiting class3
Frequency50 - 60Hz
Ambient temperature during operating-25 - 55°C
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated current40A
Release characteristicB
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
