Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current20A
Release characteristicK
Current limiting class3
Voltage typeAC/DC
Frequency50 - 60Hz
Built-in depth69mm
Rated insulation voltage Ui440V
Rated voltage400V
Connectable conductor cross section multi-wired0 - 25mm²
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20kA
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Number of protected poles2
Width in number of modular spacings2
Ambient temperature during operating-25 - 55°C
Over voltage category3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Pollution degree3
Connectable conductor cross section solid-core0 - 35mm²
Rated impulse withstand voltage Uimp4kV
Number of poles (total)2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

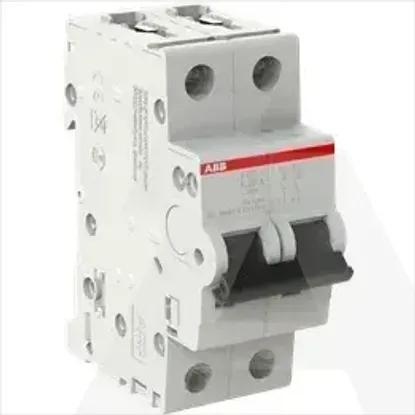

2CDS252001R0487 | S202-K20
