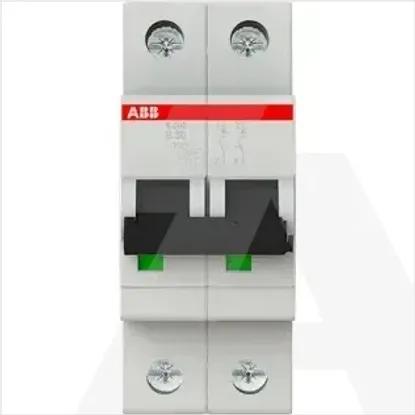

2CDS252001R0505 | S202-B50
Code: 1549272
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of protected poles2
Release characteristicB
Rated voltage400V
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated current50A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20kA
Voltage typeAC/DC
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Current limiting class3
Pollution degree3
Over voltage category3
Degree of protection (IP)IP20
Width in number of modular spacings2
Suitable for flush-mounted installationNo
Built-in depth69mm
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0 - 25mm²
Additional equipment possibleYes
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section solid-core0 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
2CDS252001R0505 | S202-B50
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of protected poles
2
Release characteristic
B
Rated voltage
400V
Number of poles (total)
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated current
50A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
20kA
Voltage type
AC/DC
Rated insulation voltage Ui
440V
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Frequency
50 .. 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
Current limiting class
3
Pollution degree
3
Over voltage category
3
Degree of protection (IP)
IP20
Width in number of modular spacings
2
Suitable for flush-mounted installation
Built-in depth
69mm
Concurrently switching neutral conductor
Connectable conductor cross section multi-wired
0 .. 25mm²
Additional equipment possible
Ambient temperature during operating
-25 .. 55°C
Connectable conductor cross section solid-core
0 .. 35mm²
