Details

  • •Circuit breakers and fuses

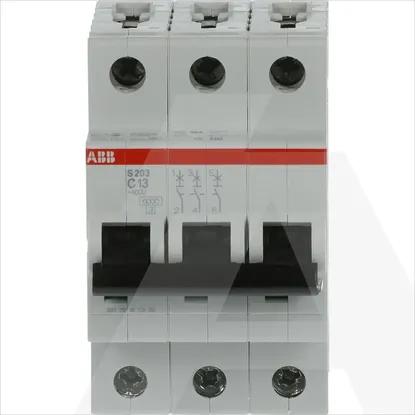

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Current limiting class3
Pollution degree3
Over voltage category3
Width in number of modular spacings3
Built-in depth69mm
Rated insulation voltage Ui440V
Connectable conductor cross section multi-wired0 - 25mm²
Frequency50 - 60Hz
Degree of protection (IP)IP20
Explosion-proofNo
Connectable conductor cross section solid-core0 - 35mm²
Ambient temperature during operating-25 - 55°C
Suitable for flush-mounted installationNo
Power loss6.9W
Voltage typeAC
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Number of protected poles3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated voltage400V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Concurrently switching neutral conductorNo
Flush-mounted installationNo
Rated current13A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
