Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC
Width in number of modular spacings3
Pollution degree3
Degree of protection (IP)IP20
Suitable for flush-mounted installationNo
Flush-mounted installationNo
Additional equipment possibleYes
Explosion-proofNo
Ambient temperature during operating-25 - 55°C
Release characteristicB
Frequency50 - 60Hz
Power loss11.1W
Built-in depth25mm
Rated impulse withstand voltage Uimp400kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated voltage400V
Rated insulation voltage Ui400V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Current limiting class32
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Over voltage category400
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 25mm²
Number of poles (total)3
Concurrently switching neutral conductorNo
Number of protected poles3
Rated current32A
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

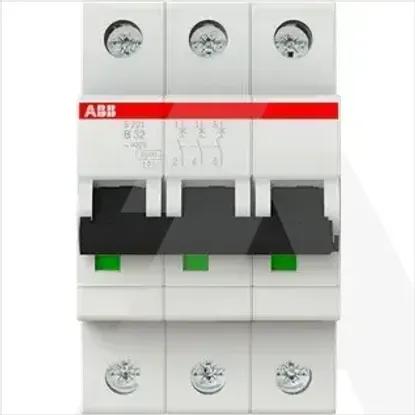

2CDS253001R0325 | S203-B32
