Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC
Current limiting class3
Built-in depth69mm
Rated voltage400V
Rated insulation voltage Ui440V
Over voltage category3
Rated current40A
Frequency50 - 60Hz
Release characteristicB
Width in number of modular spacings3
Power loss14.4W
Pollution degree3
Number of protected poles3
Explosion-proofNo
Flush-mounted installationNo
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Connectable conductor cross section multi-wired0 - 25mm²
Ambient temperature during operating-25 - 55°C
Suitable for flush-mounted installationNo
Connectable conductor cross section solid-core0 - 35mm²
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

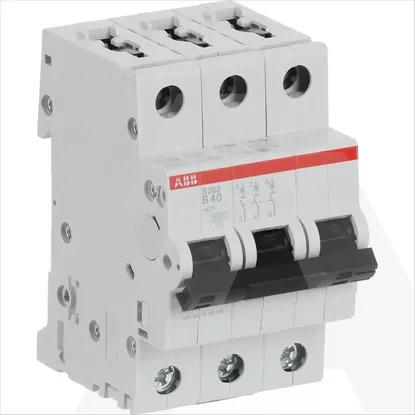

2CDS253001R0405 | S203-B40
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specificationsFrom same serie
Technical specifications
Voltage type
AC
Current limiting class
3
Built-in depth
69mm
Rated voltage
400V
Rated insulation voltage Ui
440V
Over voltage category
3
Rated current
40A
Frequency
50 .. 60Hz
Release characteristic
B
Width in number of modular spacings
3
Power loss
14.4W
Pollution degree
3
Number of protected poles
3
Explosion-proof
Flush-mounted installation
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Additional equipment possible
Connectable conductor cross section multi-wired
0 .. 25mm²
Ambient temperature during operating
-25 .. 55°C
Suitable for flush-mounted installation
Connectable conductor cross section solid-core
0 .. 35mm²
Number of poles (total)
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
20kA
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10kA
From same serie
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
