Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Built-in depth69mm
Voltage typeAC
Width in number of modular spacings3
Concurrently switching neutral conductorNo
Number of protected poles3
Rated current63A
Pollution degree3
Over voltage category3
Degree of protection (IP)IP20
Rated voltage400V
Rated insulation voltage Ui440V
Additional equipment possibleYes
Connectable conductor cross section solid-core0 - 35mm²
Release characteristicD
Current limiting class3
Frequency50 - 60Hz
Ambient temperature during operating-25 - 55°C
Suitable for flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 25mm²
Rated impulse withstand voltage Uimp4kV
Number of poles (total)3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

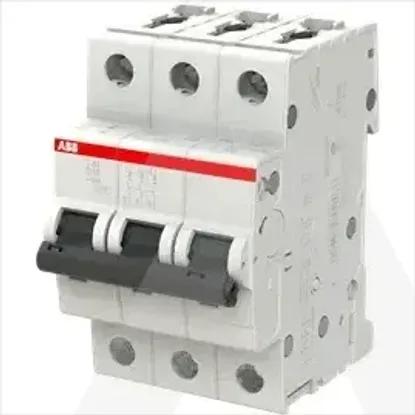

2CDS253001R0631 | S203-D63
