Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeOther
Rated current16A
Built-in depth69mm
Over voltage category3
Rated voltage400V
Pollution degree3
Connectable conductor cross section multi-wired0.75 - 25mm²
Connectable conductor cross section solid-core0.75 - 35mm²
Power loss10W
Current limiting class3
Ambient temperature during operating-25 - 55°C
Number of protected poles3
Width in number of modular spacings4.0
Degree of protection (IP)IP20
Flush-mounted installationNo
Frequency50 - 60Hz
Concurrently switching neutral conductorYes
Release characteristicC
Number of poles (total)4
Additional equipment possibleYes
Rated insulation voltage Ui440V
Explosion-proofNo
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

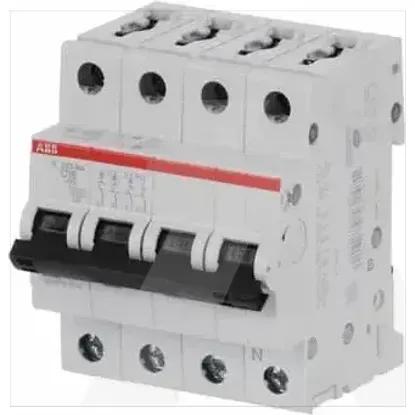

2CDS253103R0164 | S203-C16 NA
