Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicC
Rated insulation voltage Ui440V
Current limiting class3
Built-in depth69mm
Rated voltage400V
Rated current63A
Voltage typeOther
Frequency50 - 60Hz
Width in number of modular spacings4.0
Over voltage category3
Pollution degree3
Power loss19.2W
Concurrently switching neutral conductorYes
Number of poles (total)4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Connectable conductor cross section solid-core0.75 - 35mm²
Degree of protection (IP)IP20
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Ambient temperature during operating-25 - 55°C
Number of protected poles3
Connectable conductor cross section multi-wired0.75 - 25mm²
Explosion-proofNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated impulse withstand voltage Uimp4kV
Flush-mounted installationNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

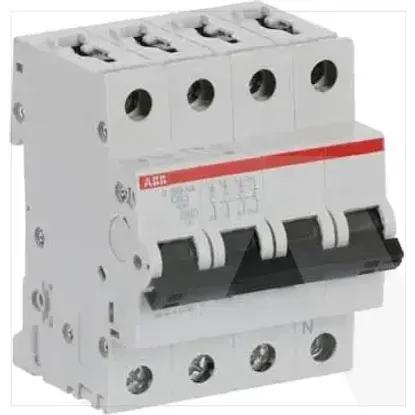

2CDS253103R0634 | S203-C63 NA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Release characteristic
C
Rated insulation voltage Ui
440V
Current limiting class
3
Built-in depth
69mm
Rated voltage
400V
Rated current
63A
Voltage type
Other
Frequency
50 .. 60Hz
Width in number of modular spacings
4.0
Over voltage category
3
Pollution degree
3
Power loss
19.2W
Concurrently switching neutral conductor
Number of poles (total)
4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
20kA
Connectable conductor cross section solid-core
0.75 .. 35mm²
Degree of protection (IP)
IP20
Additional equipment possible
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Ambient temperature during operating
-25 .. 55°C
Number of protected poles
3
Connectable conductor cross section multi-wired
0.75 .. 25mm²
Explosion-proof
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated impulse withstand voltage Uimp
4kV
Flush-mounted installation
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
