Details

  • •Circuit breakers and fuses

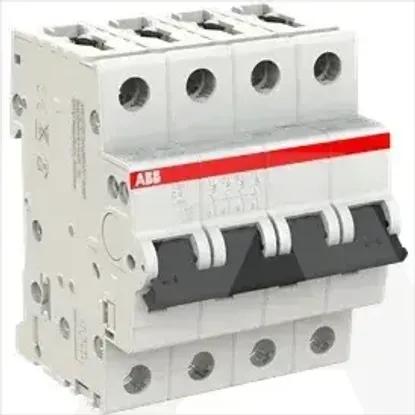

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Built-in depth69mm
Voltage typeAC/DC
Rated insulation voltage Ui440V
Frequency50 - 60Hz
Rated voltage400V
Pollution degree3
Width in number of modular spacings4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20kA
Ambient temperature during operating-25 - 55°C
Over voltage category3
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Suitable for flush-mounted installationNo
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Connectable conductor cross section multi-wired0 - 25mm²
Current limiting class3
Number of protected poles4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Connectable conductor cross section solid-core0 - 35mm²
Rated impulse withstand voltage Uimp4kV
Rated current4A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
