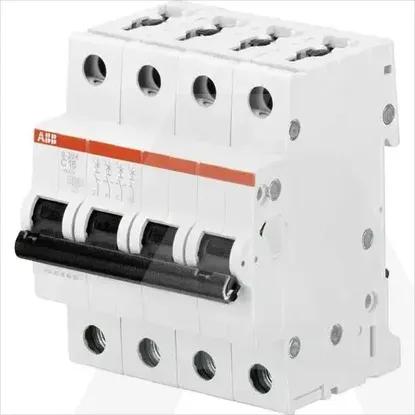

2CDS254001R0064 | S204-C6
Code: 1549482
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Number of poles (total)4
Rated current6A
Rated voltage400V
Release characteristicC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Voltage typeAC/DC
Rated insulation voltage Ui440V
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Number of protected poles4
Current limiting class3
Suitable for flush-mounted installationNo
Concurrently switching neutral conductorNo
Frequency50 - 60Hz
Over voltage category3
Pollution degree3
Degree of protection (IP)IP20
Additional equipment possibleYes
Ambient temperature during operating-25 - 55°C
Width in number of modular spacings4
Built-in depth69mm
Connectable conductor cross section solid-core0 - 35mm²
Connectable conductor cross section multi-wired0 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20kA
Power loss8W
Explosion-proofNo
Flush-mounted installationNo
