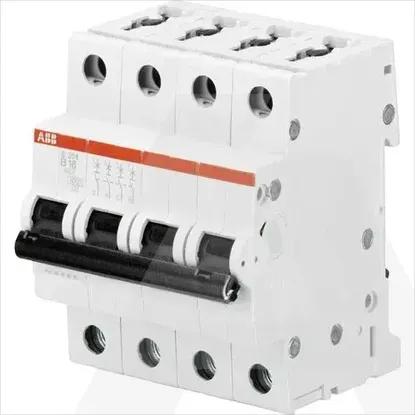

2CDS254001R0325 | S204-B32
Code: 1549513
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Release characteristicB
Number of poles (total)4
Rated current32A
Number of protected poles4
Rated insulation voltage Ui440V
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Rated voltage400V
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Suitable for flush-mounted installationNo
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Frequency50 - 60Hz
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20kA
Pollution degree3
Additional equipment possibleYes
Built-in depth69mm
Over voltage category3
Width in number of modular spacings4
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 55°C
Connectable conductor cross section multi-wired0 - 25mm²
Connectable conductor cross section solid-core0 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
