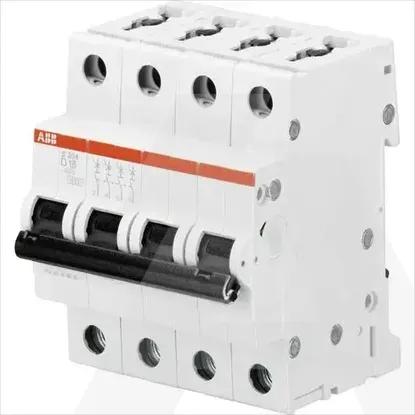

2CDS254001R0401 | S204-D40
Code: 1549518
ManufacturerABB
Catalog number2CDS254001R0401
TypeS204-D40
CategoryMiniature circuit breaker (MCB)
EAN code4016779531313
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Frequency50 - 60Hz
Built-in depth69mm
Rated insulation voltage Ui440V
Over voltage category3
Pollution degree3
Degree of protection (IP)IP20
Connectable conductor cross section solid-core0 - 35mm²
Additional equipment possibleYes
Current limiting class3
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 55°C
Suitable for flush-mounted installationNo
Connectable conductor cross section multi-wired0 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated current40A
Release characteristicD
Width in number of modular spacings4
Voltage typeAC
Rated voltage400V
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of protected poles4
