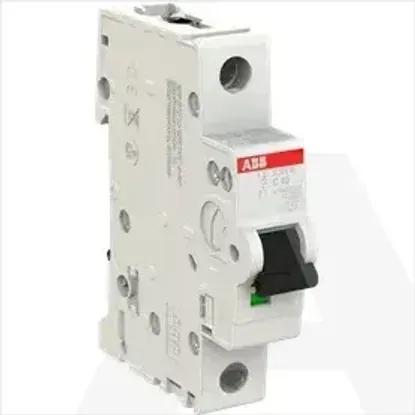

2CDS271001R0404 | S201M-C40
Code: 1549601
Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated insulation voltage Ui440V
Voltage typeAC/DC
Release characteristicC
Number of protected poles1
Rated voltage230V
Number of poles (total)1
Pollution degree3
Concurrently switching neutral conductorNo
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Connectable conductor cross section solid-core0 - 35mm²
Built-in depth69mm
Frequency50 - 60Hz
Additional equipment possibleYes
Suitable for flush-mounted installationNo
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Over voltage category3
Degree of protection (IP)IP20
Ambient temperature during operating-25 - 55°C
Width in number of modular spacings1
Connectable conductor cross section multi-wired0 - 25mm²
Rated current40A
