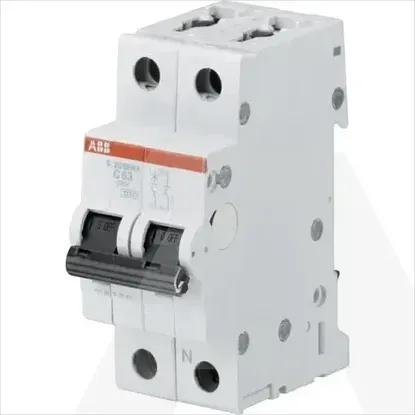

Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Built-in depth69mm
Current limiting class3
Width in number of modular spacings2
Frequency50 - 60Hz
Rated voltage230V
Voltage typeAC/DC
Connectable conductor cross section multi-wired0 - 25mm²
Suitable for flush-mounted installationNo
Rated insulation voltage Ui440V
Ambient temperature during operating-25 - 55°C
Pollution degree3
Degree of protection (IP)IP20
Over voltage category3
Connectable conductor cross section solid-core0 - 35mm²
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Concurrently switching neutral conductorYes
Number of protected poles1
Rated current6A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
