Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC/DC
Frequency50 - 60Hz
Built-in depth69mm
Rated insulation voltage Ui440V
Pollution degree3
Degree of protection (IP)IP20
Width in number of modular spacings3
Over voltage category3
Concurrently switching neutral conductorNo
Release characteristicC
Current limiting class3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Suitable for flush-mounted installationNo
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Connectable conductor cross section multi-wired0 - 25mm²
Connectable conductor cross section solid-core0 - 35mm²
Number of poles (total)3
Rated current13A
Rated voltage400V
Number of protected poles3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

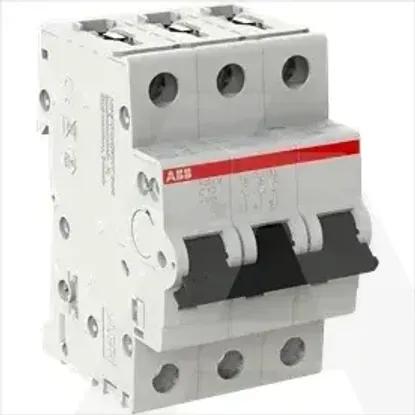

2CDS273001R0134 | S203M-C13
