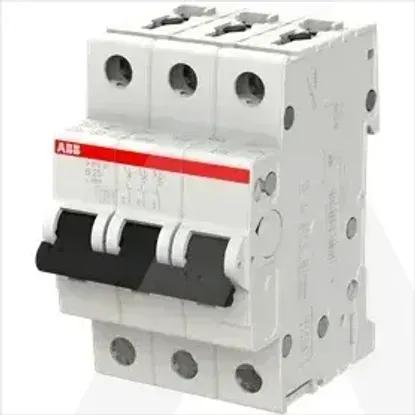

Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •ABB

Technical specifications

Voltage typeAC/DC
Explosion-proofNo
Frequency50 - 60Hz
Pollution degree3
Degree of protection (IP)IP20
Power loss9.6W
Flush-mounted installationNo
Suitable for flush-mounted installationNo
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired0 - 25mm²
Connectable conductor cross section solid-core0 - 35mm²
Ambient temperature during operating-25 - 55°C
Additional equipment possibleYes
Built-in depth35mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated insulation voltage Ui400V
Rated impulse withstand voltage Uimp400kV
Over voltage category400
Current limiting class22
Number of protected poles3
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Width in number of modular spacings3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Rated current25A
Release characteristicB
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
