Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC
Release characteristicC
Width in number of modular spacings4
Pollution degree3
Power loss14.8W
Degree of protection (IP)IP20
Flush-mounted installationNo
Connectable conductor cross section solid-core0 - 35mm²
Suitable for flush-mounted installationNo
Additional equipment possibleYes
Ambient temperature during operating-25 - 55°C
Explosion-proofNo
Connectable conductor cross section multi-wired0 - 25mm²
Rated insulation voltage Ui400V
Rated impulse withstand voltage Uimp4kV
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Current limiting class32
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Over voltage category400
Built-in depth69mm
Frequency50 - 60Hz
Rated current32A
Number of protected poles3
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Number of poles (total)4
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

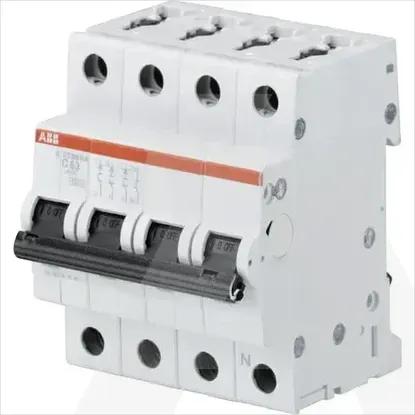

2CDS273103R0324 | S203M-C32NA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Release characteristic
C
Width in number of modular spacings
4
Pollution degree
3
Power loss
14.8W
Degree of protection (IP)
IP20
Flush-mounted installation
Connectable conductor cross section solid-core
0 .. 35mm²
Suitable for flush-mounted installation
Additional equipment possible
Ambient temperature during operating
-25 .. 55°C
Explosion-proof
Connectable conductor cross section multi-wired
0 .. 25mm²
Rated insulation voltage Ui
400V
Rated impulse withstand voltage Uimp
4kV
Rated voltage
400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Current limiting class
32
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
15kA
Over voltage category
400
Built-in depth
69mm
Frequency
50 .. 60Hz
Rated current
32A
Number of protected poles
3
Concurrently switching neutral conductor
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Number of poles (total)
4
