Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Voltage typeAC/DC
Connectable conductor cross section solid-core0 - 35mm²
Pollution degree2
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Ambient temperature during operating-25 - 55°C
Release characteristicB
Degree of protection (IP)IP20
Width in number of modular spacings4
Connectable conductor cross section multi-wired0 - 25mm²
Suitable for flush-mounted installationNo
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V15kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V15kA
Rated insulation voltage Ui400V
Built-in depth35mm
Number of protected poles4
Over voltage category400
Rated impulse withstand voltage Uimp4kV
Number of poles (total)4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15kA
Rated current10A
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15kA
Current limiting class10
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

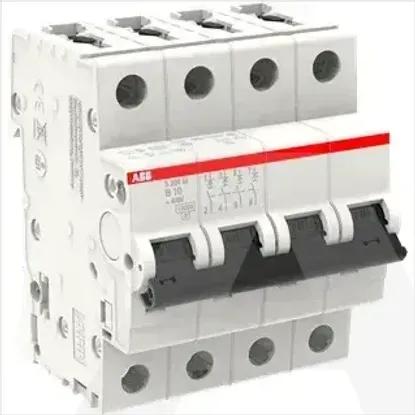

2CDS274001R0105 | S204M-B10
