Details
- •Meters
- •Kilowatt-hour meter
- •1 KOM
- •ABB
Technical specifications
Mounting methodDRA (DIN-rail adapter)
ModelMeasurement transformer
Number of positions total (counter)7
Type of indicationDigital
Suitable forPurchase/supply
Type of interfaceModbus
Type of meterElectronic
Degree of protection (IP)IP20
Energy typeEffective power and blind power
Width in number of modular spacings7
Max. current (Imax)6A
Frequency50 - 60Hz
Accuracy classC
Measurement type load profileNo
ApprovalMeasuring Instruments Directive
Pole typeFour conductor
CalibratedYes
Escapement mechanismYes
Tariff typeMulti-tariff
Pulse rate1 - 999999Imp/kWh (kvarh)
Tariff controlExternal
Pulse outputElectrical
Pulse typeS0
With lock codeNo
Nominal voltage (Un) L-L100 - 500V
EEC40 signatureNo
Nominal voltage (Un) N-L57.7 - 288V
Degree of protection (NEMA)Other
Nominal current (In)1A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

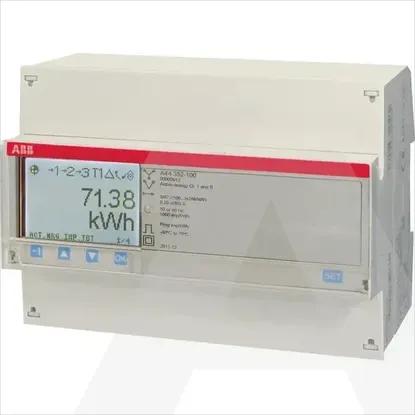

2CMA170537R1000 | A44 352-100
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Meters
- Kilowatt-hour meter
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Mounting method
DRA (DIN-rail adapter)
Model
Measurement transformer
Number of positions total (counter)
7
Type of indication
Digital
Suitable for
Purchase/supply
Type of interface
Modbus
Type of meter
Electronic
Degree of protection (IP)
IP20
Energy type
Effective power and blind power
Width in number of modular spacings
7
Max. current (Imax)
6A
Frequency
50 .. 60Hz
Accuracy class
C
Measurement type load profile
Approval
Measuring Instruments Directive
Pole type
Four conductor
Calibrated
Escapement mechanism
Tariff type
Multi-tariff
Pulse rate
1 .. 999999Imp/kWh (kvarh)
Tariff control
External
Pulse output
Electrical
Pulse type
S0
With lock code
Nominal voltage (Un) L-L
100 .. 500V
EEC40 signature
Nominal voltage (Un) N-L
57.7 .. 288V
Degree of protection (NEMA)
Other
Nominal current (In)
1A
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
