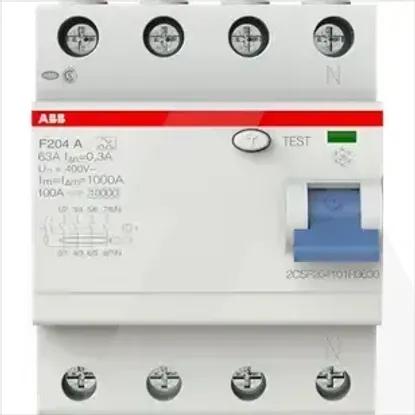

2CSF204101R3630 | F204A-63/0,3
Code: 1558160
Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •ABB
Technical specifications
Rated voltage400V
Rated current63A
Rated impulse withstand voltage Uimp4kV
Number of poles4
Leakage current typeA
Selective protectionNo
Frequency50/60 Hz
Short-circuit breaking capacity (Icw)1kA
Mounting methodDIN rail
Rated fault current300A
Additional equipment possibleYes
Width in number of modular spacings4
Rated insulation voltage Ui500V
Short-time delayed trippingNo
Surge current capacity0.25kA
Pollution degree2
With interlocking deviceYes
Degree of protection (IP)IP2X
Connectable conductor cross section solid-core25 - 25mm²
Connectable conductor cross section multi-wired0 - 25mm²
Built-in depth69mm
Ambient temperature during operating-25 - 55°C
From same serie
