Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •ABB
Technical specifications
Rated current16A
Built-in depth69mm
Voltage typeAC
Leakage current typeA
Width in number of modular spacings2
Rated insulation voltage Ui-V
Current limiting class-
Surge current capacity0kA
Release characteristicB
Ambient temperature during operating-25 - 55°C
Number of poles (total)2
Over voltage category3
Rated impulse withstand voltage Uimp-kV
Number of protected poles1
Pollution degree2
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 61009-1-kA
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity according to IEC 60947-215kA
Rated fault current0.03A
Connectable conductor cross section multi-wiredmm²
Concurrently switching neutral conductorYes
Rated voltage230V
Connectable conductor cross section solid-coremm²
Frequency50/60 Hz
With interlocking deviceNo
Degree of protection (IP)IP2X
Rated short-circuit breaking capacity according to EN 6100910kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

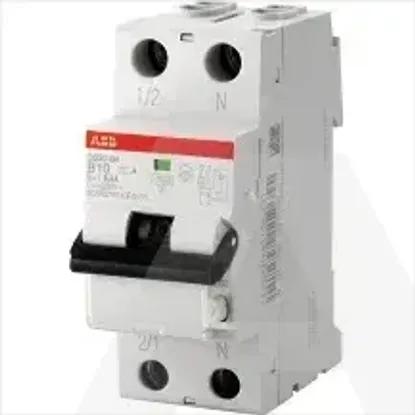

2CSR275180R1165 | DS201 M B16 A30
