Details
- •Low-voltage control systems
- •Auxiliary contactor, relay
- •10 KOM
- •ABB
Technical specifications
Height57.5mm
Width52.5mm
InterfaceNo
Number of auxiliary contacts as change-over contact0
Suitable for manual operationNo
Rated operation current Ie, 400 V3A
Depth46.5mm
With LED indicationNo
Manual operation possibleNo
Rated switch current4A
Voltage type (operating voltage)DC
Rated control supply voltage Us at AC 60HZ- - -V
Operating voltage at AC 60 Hz690 - 690V
Rated operation current4A
Operating voltage at AC 50 Hz690 - 690V
Rated control supply voltage Us at AC 50HZ- - -V
Number of auxiliary contacts as normally closed contact, delayed switching0
Rated control supply voltage Us at DC50 - 90V
Number of auxiliary contacts as normally open contact, leading0
Operating voltage at DC250 - 250V
Voltage type for actuatingDC
Mounting methodDIN-rail/screw
Number of auxiliary contacts as normally open contact4
Number of auxiliary contacts as normally closed contact0
Connection type auxiliary circuitScrew connection
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

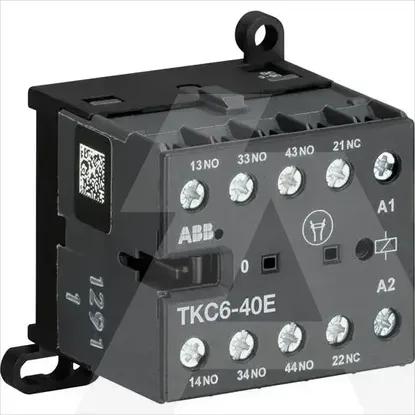

GJH1213061R5405 | TKC6-40E-90DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Auxiliary contactor, relay
- 10 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Height
57.5mm
Width
52.5mm
Interface
Number of auxiliary contacts as change-over contact
0
Suitable for manual operation
Rated operation current Ie, 400 V
3A
Depth
46.5mm
With LED indication
Manual operation possible
Rated switch current
4A
Voltage type (operating voltage)
DC
Rated control supply voltage Us at AC 60HZ
- .. -V
Operating voltage at AC 60 Hz
690 .. 690V
Rated operation current
4A
Operating voltage at AC 50 Hz
690 .. 690V
Rated control supply voltage Us at AC 50HZ
- .. -V
Number of auxiliary contacts as normally closed contact, delayed switching
0
Rated control supply voltage Us at DC
50 .. 90V
Number of auxiliary contacts as normally open contact, leading
0
Operating voltage at DC
250 .. 250V
Voltage type for actuating
DC
Mounting method
DIN-rail/screw
Number of auxiliary contacts as normally open contact
4
Number of auxiliary contacts as normally closed contact
0
Connection type auxiliary circuit
Screw connection
