Details
- •Low-voltage control systems
- •Auxiliary contactor, relay
- •10 KOM
- •ABB
Technical specifications
Voltage type (operating voltage)DC
Rated control supply voltage Us at AC 50HZ- - -V
Rated control supply voltage Us at DC140 - 260V
Manual operation possibleNo
Rated operation current Ie, 400 V3A
Height57.5mm
Suitable for manual operationNo
Rated control supply voltage Us at AC 60HZ- - -V
InterfaceNo
Number of auxiliary contacts as change-over contact0
Width52.5mm
Number of auxiliary contacts as normally open contact, leading0
With LED indicationNo
Number of auxiliary contacts as normally closed contact, delayed switching0
Rated switch current4A
Depth46.5mm
Operating voltage at AC 60 Hz690 - 690V
Operating voltage at AC 50 Hz690 - 690V
Rated operation current4A
Operating voltage at DC250 - 250V
Voltage type for actuatingAC/DC
Number of auxiliary contacts as normally open contact2
Connection type auxiliary circuitScrew connection
Number of auxiliary contacts as normally closed contact2
Mounting methodDIN-rail/screw
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

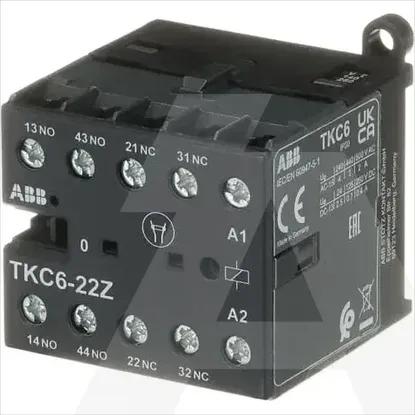

GJH1213061R6228 | TKC6-22Z 140-2
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Auxiliary contactor, relay
- 10 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Voltage type (operating voltage)
DC
Rated control supply voltage Us at AC 50HZ
- .. -V
Rated control supply voltage Us at DC
140 .. 260V
Manual operation possible
Rated operation current Ie, 400 V
3A
Height
57.5mm
Suitable for manual operation
Rated control supply voltage Us at AC 60HZ
- .. -V
Interface
Number of auxiliary contacts as change-over contact
0
Width
52.5mm
Number of auxiliary contacts as normally open contact, leading
0
With LED indication
Number of auxiliary contacts as normally closed contact, delayed switching
0
Rated switch current
4A
Depth
46.5mm
Operating voltage at AC 60 Hz
690 .. 690V
Operating voltage at AC 50 Hz
690 .. 690V
Rated operation current
4A
Operating voltage at DC
250 .. 250V
Voltage type for actuating
AC/DC
Number of auxiliary contacts as normally open contact
2
Connection type auxiliary circuit
Screw connection
Number of auxiliary contacts as normally closed contact
2
Mounting method
DIN-rail/screw
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
