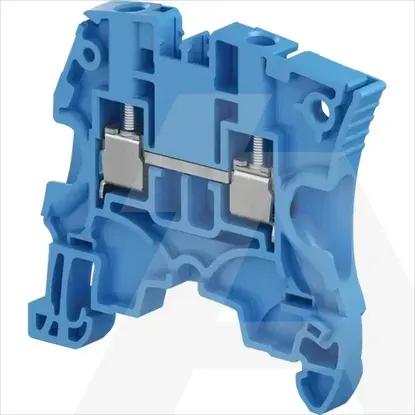

Details
- •Terminal blocks
- •Feed-through terminal block
- •1 KOM
- •TE
Technical specifications
Rated voltage1000V
Mounting methodDIN rail (top hat rail) 35 mm
ColourBlue
Length53mm
Height at lowest possible mounting height48.8mm
Type of electrical connection 2Screw connection
Inflammability class of insulation material according to with UL94V0
Operating temperature-40 - 110°C
Closing plate requiredYes
Width/grid dimension5.2mm
Type of electrical connection 1Screw connection
Connectable conductor cross section solid-core4 - 0.2mm²
Connectable conductor cross section fine-strand with cable end sleeve- - undefinedmm²
Connectable conductor cross section multi-wired- - undefinedmm²
Internally connected stagesNo
Connection positionSideways
Number of levels1
Connectable conductor cross section fine-strand without cable end sleeve0.22 - 4mm²
Number of clamp positions per level2
Material insulation bodyThermoplastic
Explosion-tested version 'Ex e'Yes
Rated current In32A
