Details
- •Terminal blocks
- •Feed-through terminal block
- •1 KOM
- •TE
Technical specifications
Operating temperature-40 - 110°C
Length53mm
Height at lowest possible mounting height48.8mm
Closing plate requiredYes
Rated voltage1000V
Type of electrical connection 2Screw connection
Inflammability class of insulation material according to with UL94V0
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Internally connected stagesNo
ColourGrey
Width/grid dimension6mm
Number of levels1
Connectable conductor cross section multi-wired- - undefinedmm²
Connectable conductor cross section fine-strand with cable end sleeve- - undefinedmm²
Number of clamp positions per level2
Connectable conductor cross section solid-core0.2 - 6mm²
Type of electrical connection 1Screw connection
Connectable conductor cross section fine-strand without cable end sleeve0.22 - 6mm²
Explosion-tested version 'Ex e'Yes
Rated current In41A
Connection positionSideways
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

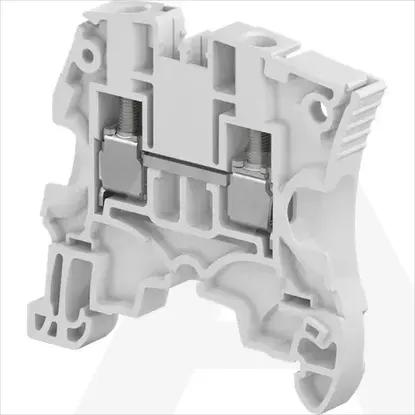

1SNK506010R0000 | ZS6
