Details

  • •Terminal blocks
  • •Feed-through terminal block
  • •1 KOM
  • •TE

Technical specifications

Length53mm
Connectable conductor cross section multi-wired- - undefinedmm²
Connectable conductor cross section solid-core0.2 - 6mm²
Inflammability class of insulation material according to with UL94V0
Connectable conductor cross section fine-strand without cable end sleeve0.22 - 6mm²
Type of electrical connection 1Screw connection
Rated voltage1000V
Closing plate requiredYes
Type of electrical connection 2Screw connection
Internally connected stagesNo
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Width/grid dimension6mm
Connection positionSideways
Height at lowest possible mounting height48.8mm
Number of clamp positions per level2
ColourBlue
Operating temperature-40 - 110°C
Connectable conductor cross section fine-strand with cable end sleeve- - undefinedmm²
Number of levels1
Rated current In41A
Explosion-tested version 'Ex e'Yes

From same serie

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

1SNK506020R0000 | ZS6-BL

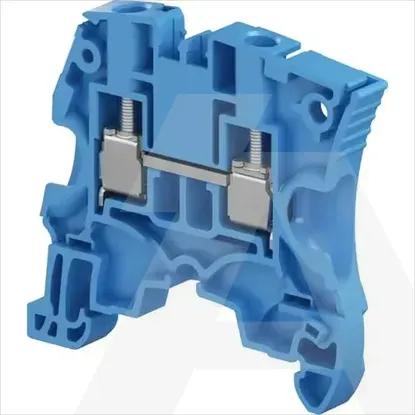

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Terminal blocks
  • Feed-through terminal block
  • 1 KOM
  • TE

Technical specifications

Length

53mm

Connectable conductor cross section multi-wired

- .. undefinedmm²

Connectable conductor cross section solid-core

0.2 .. 6mm²

Inflammability class of insulation material according to with UL94

V0

Connectable conductor cross section fine-strand without cable end sleeve

0.22 .. 6mm²

Type of electrical connection 1

Screw connection

Rated voltage

1000V

Closing plate required

Type of electrical connection 2

Screw connection

Internally connected stages

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Width/grid dimension

6mm

Connection position

Sideways

Height at lowest possible mounting height

48.8mm

Number of clamp positions per level

2

Colour

Blue

Operating temperature

-40 .. 110°C

Connectable conductor cross section fine-strand with cable end sleeve

- .. undefinedmm²

Number of levels

1

Rated current In

41A

Explosion-tested version 'Ex e'

From same serie

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
