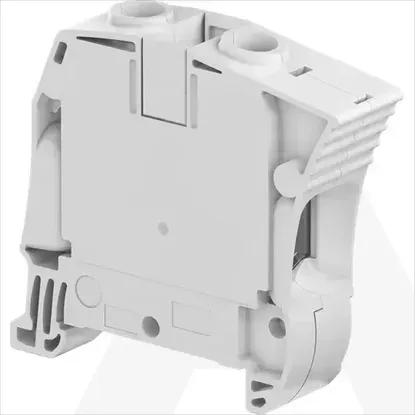

Details
- •Terminal blocks
- •Feed-through terminal block
- •1 KOM
- •TE
Technical specifications
Length59mm
Width/grid dimension16mm
Mounting methodDIN rail (top hat rail) 35 mm
Height at lowest possible mounting height55.8mm
ColourBlue
Inflammability class of insulation material according to with UL94V0
Operating temperature-40 - 110°C
Type of electrical connection 2Screw connection
Closing plate requiredNo
Type of electrical connection 1Screw connection
Internally connected stagesNo
Connectable conductor cross section multi-wired- - undefinedmm²
Connectable conductor cross section fine-strand with cable end sleeve- - undefinedmm²
Explosion-tested version 'Ex e'Yes
Material insulation bodyThermoplastic
Connectable conductor cross section solid-core6 - 35mm²
Connection positionSideways
Connectable conductor cross section fine-strand without cable end sleeve6 - 35mm²
Number of levels1
Rated voltage1000V
Rated current In125A
Width16mm
Number of clamp positions per level2
