Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •SOCOMEC
Technical specifications
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Rated operating voltage400 - 690V
Conditioned rated short-circuit current Iq50kA
Number of poles4
Number of switches1
Version as emergency stop installationYes
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
InterlockableYes
Type of control elementOther
Type of electrical connection of main circuitScrew connection
Rated permanent current Iu160A
Version as maintenance-/service switchYes
Suitable for distribution board installationYes
Suitable for floor mountingYes
Max. rated operation voltage Ue AC800V
Version as safety switchYes
Motor drive optionalNo
Version as main switchYes
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Colour control elementOther
Voltage release optionalNo
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-23, 400 V160kW
Rated permanent current at AC-21, 400 V160A
Suitable for intermediate mountingYes
Rated short-time withstand current lcw7kA
Switching power at 400 V75kW
Rated permanent current at AC-23, 400 V160A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

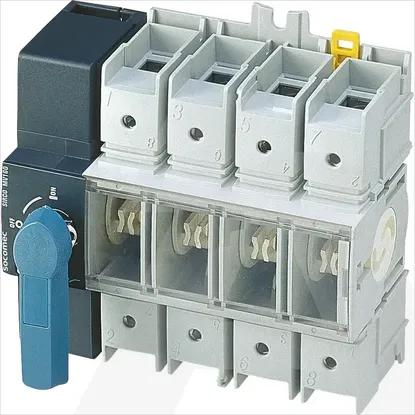

22004016 | SIRCO MV 4X160A
