Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq-kA
Rated operating voltage800 - 800V
InterlockableYes
Number of switches1
Version as main switchYes
Version as safety switchNo
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Suitable for front mounting centreNo
Suitable for floor mountingNo
Voltage release optionalNo
Colour control elementBlack
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeYes
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-23, 400 V63A
Version as reversing switchNo
Rated permanent current at AC-21, 400 V63A
Max. rated operation voltage Ue AC800V
Degree of protection (NEMA)1
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-23, 400 V30kW
Switching power at 400 V30kW
Type of control elementLong turning handle
Rated permanent current Iu63A
Motor drive optionalNo
Material housingPlastic
Motor drive integratedYes
Number of poles3
Colour housingGrey
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

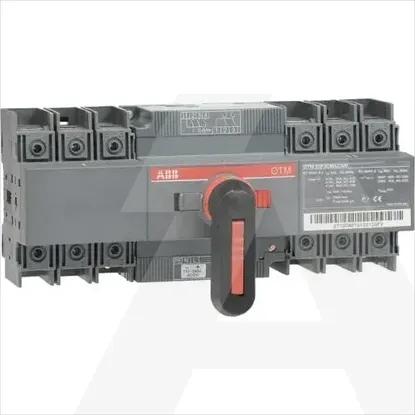

1SCA120095R1001 | OTM63F3CMA230V
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Switch disconnector (AC)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Degree of protection (IP), front side
IP20
Number of auxiliary contacts as normally open contact
0
Rated operation power at AC-3, 400 V
-kW
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally closed contact
0
Conditioned rated short-circuit current Iq
-kA
Rated operating voltage
800 .. 800V
Interlockable
Number of switches
1
Version as main switch
Version as safety switch
Version as maintenance-/service switch
Version as emergency stop installation
Suitable for front mounting centre
Suitable for floor mounting
Voltage release optional
Colour control element
Black
Suitable for distribution board installation
Suitable for intermediate mounting
Suitable for front mounting 4-hole
Device construction
Built-in device plug-in technique
Rated permanent current at AC-23, 400 V
63A
Version as reversing switch
Rated permanent current at AC-21, 400 V
63A
Max. rated operation voltage Ue AC
800V
Degree of protection (NEMA)
1
Rated short-time withstand current lcw
2.5kA
Rated operation power at AC-23, 400 V
30kW
Switching power at 400 V
30kW
Type of control element
Long turning handle
Rated permanent current Iu
63A
Motor drive optional
Material housing
Plastic
Motor drive integrated
Number of poles
3
Colour housing
Grey
