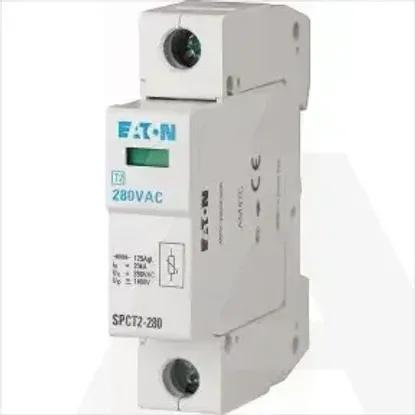

SPCT2-460/1
Code: 1578367
Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •EATON
Technical specifications
System configuration DCNo
System configuration TNYes
System configuration TN-C-SNo
System configuration TTNo
Max. discharge surge current (8/20)40kA
System configuration ITNo
System configuration TN-CNo
System configuration TN-SYes
Number of conductors (without earthing)1
Nominal discharge surge current (8/20)20kA
System configuration otherYes
Nominal voltage AC460V
Voltage protection level2.2kV
Construction size1 modular spacing
Integrated backup fuseNo
Integrated short-circuit protectionNo
Mounting methodDIN rail (top hat rail) 35 mm
Leakage-current freeNo
Max. conductor cross section flexible (fine-strand)35mm²
Signalling at the deviceOptic
Max. PV-voltage0V
Voltage protection level N-PE0kV
Max. continuous voltage AC460V
With remote signalling contactNo
Max. overcurrent protection device, parallel connection (fuse)0A
Category type 2Yes
Max. continuous voltage DC0V
Voltage protection level L-N0kV
Max. conductor cross section solid (solid, stranded)25mm²
Integrated short-circuit protection selective to fuse gG0A
Short-circuit breaking capacity (Isccr)0kA
Degree of protection (IP)IP20
Max. overcurrent protection device, series connection (fuse)125A
Nominal voltage DC0V
From same serie
