Details
- •Low-voltage industrial components

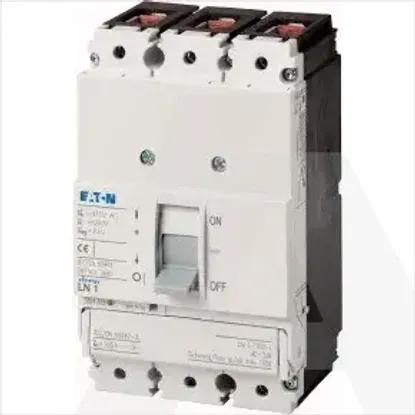

- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of poles3
Rated permanent current Iu63A
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V0kW
Degree of protection (IP), front sideIP20
Rated short-time withstand current lcw2kA
Version as maintenance-/service switchYes
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Colour control elementGrey
Version as main switchYes
InterlockableYes
Version as safety switchNo
Motor drive integratedNo
Rated operation power at AC-23, 400 V30kW
Number of switches-
Version as emergency stop installationNo
Type of control elementRocker lever
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitFrame clamp
Conditioned rated short-circuit current Iq100kA
Suitable for intermediate mountingYes
Rated permanent current at AC-21, 400 V0A
Max. rated operation voltage Ue AC400V
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Motor drive optionalYes
Voltage release optionalYes
Device constructionBuilt-in device fixed built-in technique
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Switching power at 400 V0kW
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
LN1-63-I
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Number of poles
3
Rated permanent current Iu
63A
Number of auxiliary contacts as normally open contact
0
Rated operating voltage
690 .. 690V
Number of auxiliary contacts as normally closed contact
0
Rated operation power at AC-3, 400 V
0kW
Degree of protection (IP), front side
IP20
Rated short-time withstand current lcw
2kA
Version as maintenance-/service switch
Suitable for floor mounting
Suitable for front mounting 4-hole
Colour control element
Grey
Version as main switch
Interlockable
Version as safety switch
Motor drive integrated
Rated operation power at AC-23, 400 V
30kW
Number of switches
-
Version as emergency stop installation
Type of control element
Rocker lever
Number of auxiliary contacts as change-over contact
0
Type of electrical connection of main circuit
Frame clamp
Conditioned rated short-circuit current Iq
100kA
Suitable for intermediate mounting
Rated permanent current at AC-21, 400 V
0A
Max. rated operation voltage Ue AC
400V
Rated permanent current at AC-23, 400 V
-A
Version as reversing switch
Motor drive optional
Voltage release optional
Device construction
Built-in device fixed built-in technique
Suitable for distribution board installation
Suitable for front mounting centre
Switching power at 400 V
0kW
