Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
With status indicationYes
Suitable for safety functionsYes
Material housingPlastic
Type of interface for safety communicationNone
Coating housingOther
Switching functionSlow-action switch
Rated operation current Ie at DC-13, 230 V0A
Rated operation current Ie at AC-15, 230 V0A
Type of electric connectionCable entry metrical
Number of safety auxiliary contacts0
Degree of protection (IP)IP66/IP67
Construction type housingCuboid
Explosion safety category for gasNone
Explosion safety category for dustNone
Forced openingNo
Output electronicYes
Type of interfaceNone
Type of control elementPlunger
Rated operation current Ie at AC-15, 24 V0A
Length of sensor33.5mm
Rated operation current Ie at AC-15, 125 V0A
Diameter sensor0mm
Height of sensor61mm
Rated operation current Ie at DC-13, 24 V0.2A
Rated operation current Ie at DC-13, 125 V0A
Width sensor31mm
Ambient temperature during operating-25 - 70°C
Alignment of the control elementRoller cam straight
Degree of protection (NEMA)Other
Number of contacts as normally closed contact2
Switching function latchingNo
Number of contacts as change-over contact0
Number of contacts as normally open contact0
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

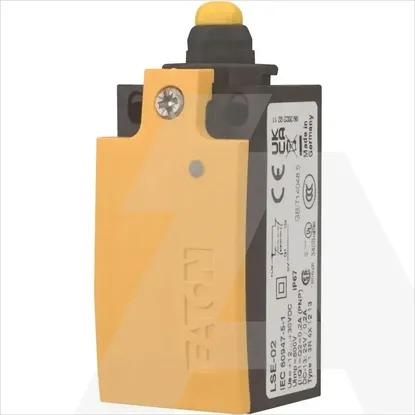

LSE-02
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
With status indication
Suitable for safety functions
Material housing
Plastic
Type of interface for safety communication
None
Coating housing
Other
Switching function
Slow-action switch
Rated operation current Ie at DC-13, 230 V
0A
Rated operation current Ie at AC-15, 230 V
0A
Type of electric connection
Cable entry metrical
Number of safety auxiliary contacts
0
Degree of protection (IP)
IP66/IP67
Construction type housing
Cuboid
Explosion safety category for gas
None
Explosion safety category for dust
None
Forced opening
Output electronic
Type of interface
None
Type of control element
Plunger
Rated operation current Ie at AC-15, 24 V
0A
Length of sensor
33.5mm
Rated operation current Ie at AC-15, 125 V
0A
Diameter sensor
0mm
Height of sensor
61mm
Rated operation current Ie at DC-13, 24 V
0.2A
Rated operation current Ie at DC-13, 125 V
0A
Width sensor
31mm
Ambient temperature during operating
-25 .. 70°C
Alignment of the control element
Roller cam straight
Degree of protection (NEMA)
Other
Number of contacts as normally closed contact
2
Switching function latching
Number of contacts as change-over contact
0
Number of contacts as normally open contact
0
