Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Height115mm
Width55mm
Depth132.1mm
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally open contact0
Number of normally open contacts as main contact3
Modular versionNo
Number of normally closed contacts as main contact0
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-1, 400 V98A
Voltage type for actuatingAC
Rated control supply voltage Us at AC 50HZ24 - 24V
Rated operation power NEMA37kW
Number of auxiliary contacts as normally closed contact0
Operating voltage at AC 60 Hz230 - 690V
Operating voltage at AC 50 Hz230 - 690V
Rated operation current Ie at AC-3, 400 V65A
Rated operation power at AC-4, 400 V12kW
Rated control supply voltage Us at DC0 - 0V
Rated operation current Ie at AC-4, 400 V25A
Rated control supply voltage Us at AC 60HZ0 - 0V
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

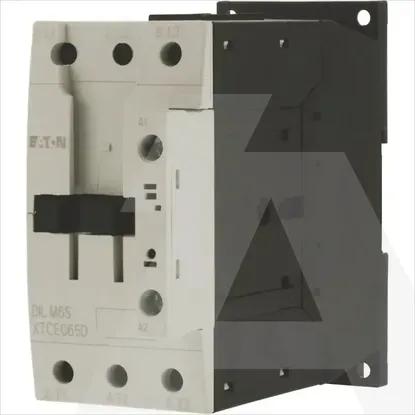

DILM65(24V50HZ)
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Height
115mm
Width
55mm
Depth
132.1mm
Rated operation power at AC-3, 400 V
30kW
Number of auxiliary contacts as normally open contact
0
Number of normally open contacts as main contact
3
Modular version
Number of normally closed contacts as main contact
0
Type of electrical connection of main circuit
Screw connection
Rated operation current Ie at AC-1, 400 V
98A
Voltage type for actuating
AC
Rated control supply voltage Us at AC 50HZ
24 .. 24V
Rated operation power NEMA
37kW
Number of auxiliary contacts as normally closed contact
0
Operating voltage at AC 60 Hz
230 .. 690V
Operating voltage at AC 50 Hz
230 .. 690V
Rated operation current Ie at AC-3, 400 V
65A
Rated operation power at AC-4, 400 V
12kW
Rated control supply voltage Us at DC
0 .. 0V
Rated operation current Ie at AC-4, 400 V
25A
Rated control supply voltage Us at AC 60HZ
0 .. 0V
