Details
- •Earthing, lightning and surge protection
- •Combined arrester for power supply systems
- •1 KOM
- •EATON
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Lightning impulse current (10/350 µs)12.5kA
Number of poles2
Voltage protection level0kV
Max. continuous voltage AC280V
Construction sizeOther
Follow current extinguishing capability0kA
Remote signallingNo
ExhaustingNo
Nominal voltage AC280V
Nominal voltage DC0V
Degree of protection (IP)IP20
Max. conductor cross section flexible (fine-strand)35mm²
Specific energy (W/R)2500kJ/Ohm
Signalling at the deviceOptic
Max. PV-voltage0V
Max. conductor cross section solid (solid, stranded)25mm²
Voltage protection level (DC+/DC- - PE)0kV
System configuration DCNo
Voltage protection level L-N1.5kV
Voltage protection level N-PE1.5kV
Voltage protection level (DC+ - DC-)0kV
Energy-coordinated protection effect with regard to the terminal equipmentNo
Max. continuous voltage DC0V
Integrated backup fuseNo
Voltage protection level L-PE1.5kV
System configuration TN-CNo
System configuration TN-SNo
System configuration TN-C-SNo
System configuration otherYes
System configuration ITNo
System configuration TNYes
System configuration TTNo
Test classType 1 + 2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

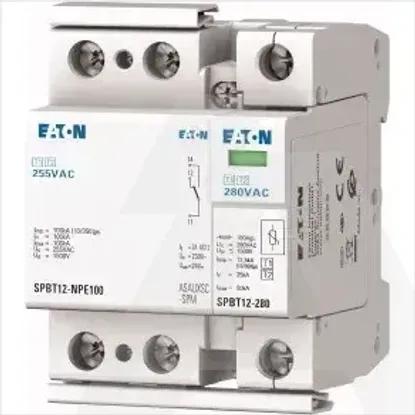

SPBT12-280-1+NPE-AX
