Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •EATON
Technical specifications
Construction size4 modular spacing
Mounting methodDIN rail (top hat rail) 35 mm
With remote signalling contactNo
Number of conductors (without earthing)3
Voltage protection level1.6kV
Max. continuous voltage AC335V
Nominal discharge surge current (8/20)20kA
Max. continuous voltage DC0V
Voltage protection level L-N0kV
Nominal voltage AC335V
Max. PV-voltage0V
Nominal voltage DC0V
Degree of protection (IP)IP20
Signalling at the deviceOptic
Category type 2Yes
System configuration TN-CNo
Voltage protection level N-PE0kV
System configuration TNYes
System configuration ITYes
Max. conductor cross section flexible (fine-strand)35mm²
Integrated backup fuseNo
Max. conductor cross section solid (solid, stranded)25mm²
System configuration DCNo
System configuration TN-C-SYes
Short-circuit breaking capacity (Isccr)0kA
System configuration TTYes
System configuration otherYes
Max. discharge surge current (8/20)40kA
System configuration TN-SYes
Max. overcurrent protection device, parallel connection (fuse)0A
Integrated short-circuit protectionNo
Integrated short-circuit protection selective to fuse gG0A
Max. overcurrent protection device, series connection (fuse)125A
Leakage-current freeNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

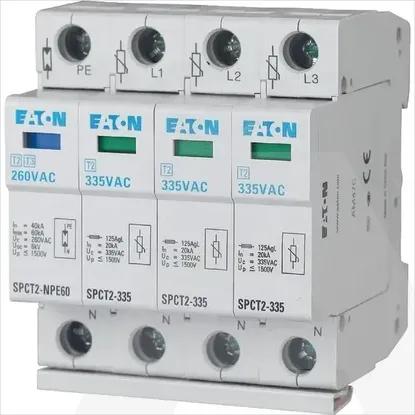

SPCT2-335-3+NPE
