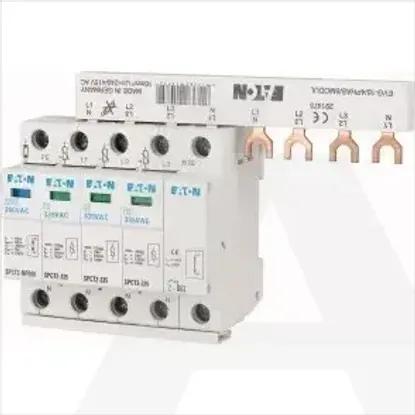

SPCT2-335-3+NPE/BB
Code: 1579692
Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •EATON
Technical specifications
System configuration TNYes
System configuration TN-CNo
System configuration ITYes
System configuration TN-SYes
System configuration DCNo
System configuration otherYes
Number of conductors (without earthing)3
Nominal discharge surge current (8/20)20kA
Nominal voltage AC335V
System configuration TTYes
Nominal voltage DC0V
Max. continuous voltage DC0V
Voltage protection level1.6kV
Voltage protection level L-N0kV
Max. discharge surge current (8/20)40kA
Voltage protection level N-PE0kV
Short-circuit breaking capacity (Isccr)0kA
Max. overcurrent protection device, parallel connection (fuse)0A
Max. continuous voltage AC335V
Max. overcurrent protection device, series connection (fuse)125A
System configuration TN-C-SYes
Max. PV-voltage0V
Integrated short-circuit protectionNo
Integrated short-circuit protection selective to fuse gG0A
Integrated backup fuseNo
Leakage-current freeNo
Max. conductor cross section solid (solid, stranded)25mm²
Mounting methodDIN rail (top hat rail) 35 mm
Construction size4 modular spacing
Max. conductor cross section flexible (fine-strand)35mm²
With remote signalling contactNo
Signalling at the deviceOptic
Degree of protection (IP)IP20
Category type 2Yes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
