Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •EATON
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Number of conductors (without earthing)1
With remote signalling contactNo
Nominal discharge surge current (8/20)20kA
Construction size2 modular spacing
Nominal voltage DC0V
Category type 2Yes
Max. conductor cross section flexible (fine-strand)35mm²
Voltage protection level N-PE0kV
Voltage protection level L-N0kV
Max. continuous voltage AC385V
System configuration TN-CNo
System configuration DCNo
Degree of protection (IP)IP20
System configuration TTYes
Max. PV-voltage0V
Max. continuous voltage DC0V
Signalling at the deviceOptic
System configuration TN-C-SNo
Max. discharge surge current (8/20)40kA
System configuration TNYes
Max. conductor cross section solid (solid, stranded)25mm²
Integrated backup fuseNo
Voltage protection level1.8kV
System configuration TN-SYes
System configuration otherYes
Nominal voltage AC385V
System configuration ITYes
Max. overcurrent protection device, series connection (fuse)125A
Short-circuit breaking capacity (Isccr)0kA
Leakage-current freeNo
Integrated short-circuit protection selective to fuse gG0A
Integrated short-circuit protectionNo
Max. overcurrent protection device, parallel connection (fuse)0A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

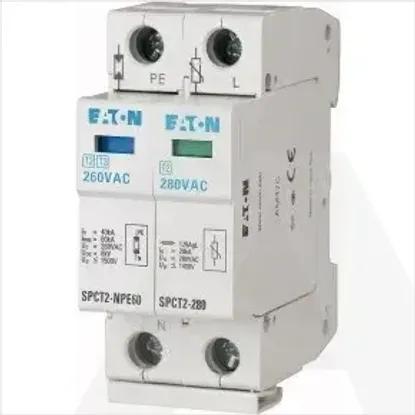

SPCT2-385-1+NPE
