Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •EATON
Technical specifications
Construction size1 modular spacing
Number of conductors (without earthing)0
With remote signalling contactNo
Mounting methodDIN rail (top hat rail) 35 mm
Voltage protection level1kV
Category type 2Yes
Signalling at the deviceOptic
Max. continuous voltage AC260V
Nominal discharge surge current (8/20)30kA
Nominal voltage AC260V
Nominal voltage DC0V
Voltage protection level L-N0kV
Max. continuous voltage DC0V
Max. discharge surge current (8/20)60kA
Degree of protection (IP)IP20
System configuration ITNo
Max. PV-voltage0V
Voltage protection level N-PE0kV
Short-circuit breaking capacity (Isccr)0kA
System configuration TNYes
Integrated backup fuseNo
System configuration TN-CNo
System configuration otherYes
Max. conductor cross section solid (solid, stranded)25mm²
Max. conductor cross section flexible (fine-strand)35mm²
System configuration TTNo
System configuration DCNo
System configuration TN-C-SNo
System configuration TN-SNo
Integrated short-circuit protectionNo
Integrated short-circuit protection selective to fuse gG0A
Max. overcurrent protection device, parallel connection (fuse)0A
Leakage-current freeNo
Max. overcurrent protection device, series connection (fuse)125A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

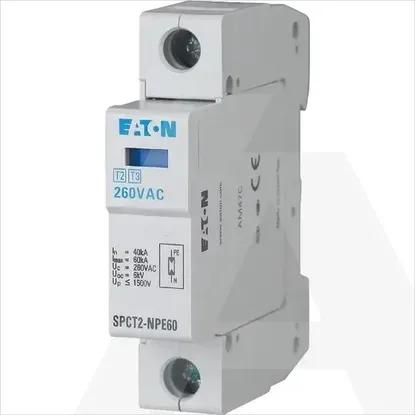

SPCT2-NPE60/1
