Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •EATON
Technical specifications
Construction size1 modular spacing
Voltage protection level1.4kV
Max. continuous voltage AC280V
Number of conductors (without earthing)0
Mounting methodOn basic element
With remote signalling contactNo
Voltage protection level N-PE0kV
Voltage protection level L-N0kV
Max. conductor cross section solid (solid, stranded)25mm²
Nominal voltage DC0V
Signalling at the deviceOptic
Max. continuous voltage DC0V
Category type 2No
Integrated backup fuseNo
Nominal discharge surge current (8/20)5kA
Max. conductor cross section flexible (fine-strand)0mm²
System configuration TN-C-SNo
Degree of protection (IP)IP20
Nominal voltage AC280V
System configuration TTNo
System configuration TN-CNo
System configuration ITNo
Max. PV-voltage0V
System configuration otherYes
System configuration DCNo
System configuration TNNo
System configuration TN-SNo
Max. overcurrent protection device, series connection (fuse)125A
Max. overcurrent protection device, parallel connection (fuse)0A
Max. discharge surge current (8/20)10kA
Short-circuit breaking capacity (Isccr)0kA
Leakage-current freeNo
Integrated short-circuit protection selective to fuse gG0A
Integrated short-circuit protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

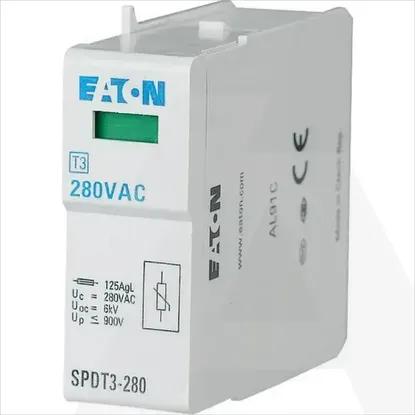

SPDT3-280
