Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •EATON
Technical specifications
System configuration ITNo
Max. PV-voltage0V
Nominal voltage DC0V
Voltage protection level L-N0kV
Signalling at the deviceOptic
Construction size2 modular spacing
Category type 2No
Voltage protection level N-PE0kV
Degree of protection (IP)IP20
Max. conductor cross section solid (solid, stranded)25mm²
Max. continuous voltage DC0V
System configuration DCNo
Nominal voltage AC280V
Integrated backup fuseNo
System configuration TN-CNo
Max. continuous voltage AC280V
Max. conductor cross section flexible (fine-strand)0mm²
Nominal discharge surge current (8/20)5kA
With remote signalling contactNo
System configuration TNNo
Mounting methodDIN rail (top hat rail) 35 mm
Voltage protection level1.4kV
System configuration TN-SNo
Number of conductors (without earthing)2
System configuration TN-C-SNo
Integrated short-circuit protection selective to fuse gG0A
System configuration otherYes
System configuration TTNo
Short-circuit breaking capacity (Isccr)0kA
Integrated short-circuit protectionNo
Max. overcurrent protection device, parallel connection (fuse)0A
Max. overcurrent protection device, series connection (fuse)125A
Max. discharge surge current (8/20)10kA
Leakage-current freeNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

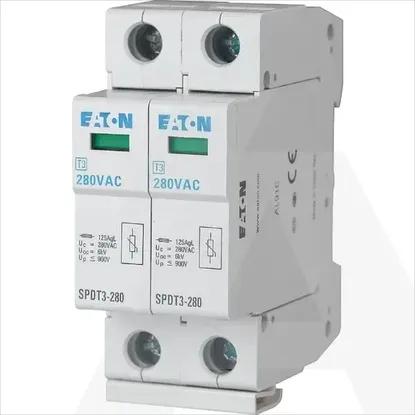

SPDT3-280/2
