Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •EATON
Technical specifications
Mounting methodDIN rail (top hat rail) 35 mm
Number of conductors (without earthing)1
Construction size2 modular spacing
With remote signalling contactNo
Max. continuous voltage AC335V
Voltage protection level1.6kV
Signalling at the deviceOptic
Max. PV-voltage0V
Nominal voltage AC335V
Max. continuous voltage DC0V
Category type 2No
Degree of protection (IP)IP20
Nominal voltage DC0V
Voltage protection level L-N0kV
Nominal discharge surge current (8/20)2.5kA
Voltage protection level N-PE0kV
System configuration TTNo
System configuration ITNo
Max. conductor cross section solid (solid, stranded)25mm²
System configuration TN-CNo
System configuration otherYes
System configuration DCNo
System configuration TN-SNo
Integrated backup fuseNo
System configuration TNNo
Max. conductor cross section flexible (fine-strand)0mm²
Max. discharge surge current (8/20)10kA
System configuration TN-C-SNo
Integrated short-circuit protectionNo
Max. overcurrent protection device, series connection (fuse)125A
Integrated short-circuit protection selective to fuse gG0A
Leakage-current freeNo
Short-circuit breaking capacity (Isccr)0kA
Max. overcurrent protection device, parallel connection (fuse)0A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

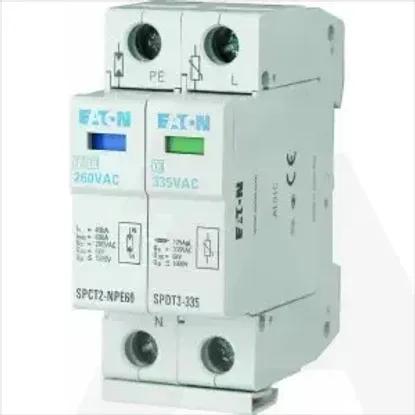

SPDT3-335-1+NPE
