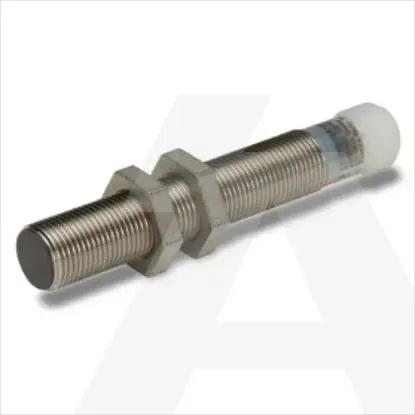

E59-A12A104D01-C1
Code: 1582799
ManufacturerEaton
Catalog number166833
TypeE59-A12A104D01-C1
CategoryInductive proximity switch
EAN code4015081643486
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Coating housingOther
Switching frequency200Hz
Voltage typeDC
Number of semiconductor outputs with signalling function0
Material housingMetal
Suitable for safety functionsNo
CascadableNo
Rated control supply voltage Us at DC15 - 30V
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of protected semiconductor outputs0
Number of contact energized outputs with signalling function0
Type of switch functionOther
Number of protected contact energized outputs0
Explosion safety category for dustNone
Category according to EN 954-1B
Type of electric connectionOther
Rated control supply voltage Us at AC 60HZ0 - 0V
With monitoring function downstream switching devicesNo
Compression-resistantNo
Type of interface for safety communicationNone
Explosion safety category for gasNone
Max. output current at protected output20mA
Construction type housingCylinder, screw-thread
Type of actuationMetallic Target
Type of interfaceNone
Mechanical mounting condition for sensorConcise
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Switching distance4mm
Type of switching outputOther
Supply voltage15 - 30V
Width sensor0mm
Diameter sensor12mm
Height of sensor0mm
Length of sensor77.5mm
