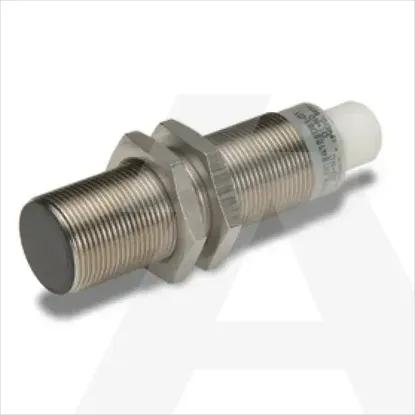

E59-A18A107D01-C1
Code: 1582807
ManufacturerEaton
Catalog number166805
TypeE59-A18A107D01-C1
CategoryInductive proximity switch
EAN code4015081643646
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
Material housingMetal
Suitable for safety functionsNo
CascadableNo
Switching frequency200Hz
Number of protected contact energized outputs0
Number of protected semiconductor outputs0
Type of interface for safety communicationNone
Number of semiconductor outputs with signalling function0
Construction type housingCylinder, screw-thread
Type of electric connectionOther
Rated control supply voltage Us at AC 50HZ0 - 0V
Explosion safety category for gasNone
Rated control supply voltage Us at AC 60HZ0 - 0V
Max. output current at protected output20mA
Type of switch functionOther
Coating housingOther
Explosion safety category for dustNone
Number of contact energized outputs with signalling function0
Rated control supply voltage Us at DC15 - 30V
Category according to EN 954-1B
Mechanical mounting condition for sensorConcise
Type of interfaceNone
Type of actuationMetallic Target
With monitoring function downstream switching devicesNo
Compression-resistantNo
SIL according to IEC 61508None
Performance level according to EN ISO 13849-1None
Switching distance7mm
Type of switching outputOther
Supply voltage15 - 30V
Width sensor0mm
Diameter sensor18mm
Height of sensor0mm
Length of sensor69.3mm
