Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Suitable for safety functionsNo
Switching distance15mm
Material housingMetal
Switching frequency100Hz
CascadableNo
Number of contact energized outputs with signalling function0
Number of semiconductor outputs with signalling function0
Coating housingOther
Voltage typeDC
Type of switching outputOther
Number of protected semiconductor outputs0
Type of actuationMetallic Target
Rated control supply voltage Us at DC15 - 30V
Compression-resistantNo
Rated control supply voltage Us at AC 50HZ0 - 0V
Mechanical mounting condition for sensorNot flat
With monitoring function downstream switching devicesNo
Width sensor0mm
Explosion safety category for gasNone
Type of switch functionOther
Max. output current at protected output20mA
Rated control supply voltage Us at AC 60HZ0 - 0V
Explosion safety category for dustNone
Construction type housingCylinder, screw-thread
Number of protected contact energized outputs0
Type of interfaceNone
Type of interface for safety communicationNone
Supply voltage15 - 30V
Length of sensor64.5mm
Performance level according to EN ISO 13849-1None
Diameter sensor18mm
Height of sensor0mm
Type of electric connectionCable
Degree of protection (NEMA)4X, 6, 13
SIL according to IEC 61508None
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

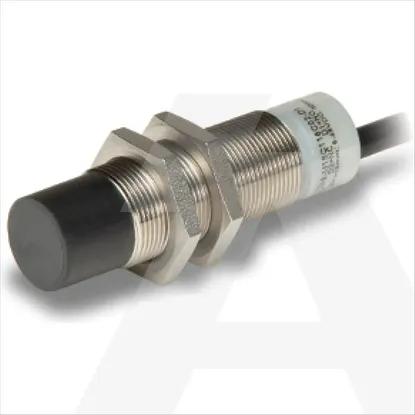

E59-A18C115C02-CV
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Suitable for safety functions
Switching distance
15mm
Material housing
Metal
Switching frequency
100Hz
Cascadable
Number of contact energized outputs with signalling function
0
Number of semiconductor outputs with signalling function
0
Coating housing
Other
Voltage type
DC
Type of switching output
Other
Number of protected semiconductor outputs
0
Type of actuation
Metallic Target
Rated control supply voltage Us at DC
15 .. 30V
Compression-resistant
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Mechanical mounting condition for sensor
Not flat
With monitoring function downstream switching devices
Width sensor
0mm
Explosion safety category for gas
None
Type of switch function
Other
Max. output current at protected output
20mA
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Explosion safety category for dust
None
Construction type housing
Cylinder, screw-thread
Number of protected contact energized outputs
0
Type of interface
None
Type of interface for safety communication
None
Supply voltage
15 .. 30V
Length of sensor
64.5mm
Performance level according to EN ISO 13849-1
None
Diameter sensor
18mm
Height of sensor
0mm
Type of electric connection
Cable
Degree of protection (NEMA)
4X, 6, 13
SIL according to IEC 61508
None
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
