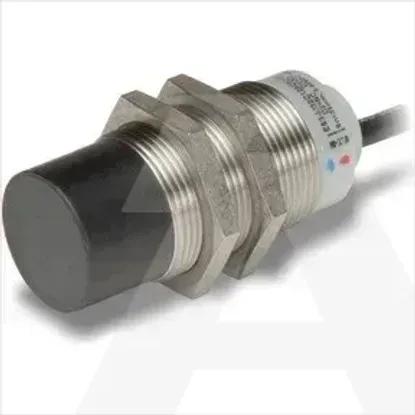

E59-A30C125C02-CV
Code: 1582817
ManufacturerEaton
Catalog number166687
TypeE59-A30C125C02-CV
CategoryInductive proximity switch
EAN code4015081643455
Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Number of protected contact energized outputs0
Number of semiconductor outputs with signalling function0
Material housingMetal
CascadableNo
Type of interface for safety communicationNone
Coating housingOther
Voltage typeDC
Switching frequency100Hz
Suitable for safety functionsNo
Number of protected semiconductor outputs0
Number of contact energized outputs with signalling function0
Rated control supply voltage Us at AC 60HZ0 - 0V
With monitoring function downstream switching devicesNo
Type of electric connectionCable
Rated control supply voltage Us at AC 50HZ0 - 0V
Explosion safety category for dustNone
Performance level according to EN ISO 13849-1None
Rated control supply voltage Us at DC15 - 30V
Type of switch functionOther
Construction type housingCylinder, screw-thread
Type of actuationMetallic Target
Mechanical mounting condition for sensorNot flat
Max. output current at protected output20mA
Explosion safety category for gasNone
SIL according to IEC 61508None
Type of interfaceNone
Compression-resistantNo
Category according to EN 954-1B
Switching distance25mm
Type of switching outputOther
Supply voltage15 - 30V
Width sensor0mm
Diameter sensor30mm
Height of sensor0mm
Length of sensor69.6mm
