Details
- •Sensors
- •Inductive proximity switch
- •1 KOM
- •EATON
Technical specifications
Suitable for safety functionsNo
Voltage typeDC
Material housingMetal
CascadableNo
Switching distance25mm
Number of protected contact energized outputs0
Number of semiconductor outputs with signalling function0
Coating housingOther
Number of contact energized outputs with signalling function0
Type of switching outputOther
Number of protected semiconductor outputs0
Switching frequency100Hz
Type of interface for safety communicationNone
Type of electric connectionOther
Type of switch functionOther
Explosion safety category for dustNone
Rated control supply voltage Us at AC 50HZ0 - 0V
Max. output current at protected output20mA
Explosion safety category for gasNone
Construction type housingCylinder, screw-thread
Rated control supply voltage Us at DC15 - 30V
Rated control supply voltage Us at AC 60HZ0 - 0V
Mechanical mounting condition for sensorNot flat
SIL according to IEC 61508None
With monitoring function downstream switching devicesNo
Performance level according to EN ISO 13849-1None
Width sensor0mm
Type of actuationMetallic Target
Supply voltage15 - 30V
Height of sensor0mm
Length of sensor74.1mm
Diameter sensor30mm
Category according to EN 954-1B
Compression-resistantNo
Type of interfaceNone
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

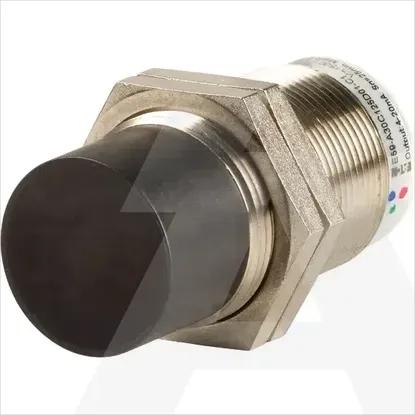

E59-A30C125D01-C1
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- Inductive proximity switch
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Suitable for safety functions
Voltage type
DC
Material housing
Metal
Cascadable
Switching distance
25mm
Number of protected contact energized outputs
0
Number of semiconductor outputs with signalling function
0
Coating housing
Other
Number of contact energized outputs with signalling function
0
Type of switching output
Other
Number of protected semiconductor outputs
0
Switching frequency
100Hz
Type of interface for safety communication
None
Type of electric connection
Other
Type of switch function
Other
Explosion safety category for dust
None
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Max. output current at protected output
20mA
Explosion safety category for gas
None
Construction type housing
Cylinder, screw-thread
Rated control supply voltage Us at DC
15 .. 30V
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Mechanical mounting condition for sensor
Not flat
SIL according to IEC 61508
None
With monitoring function downstream switching devices
Performance level according to EN ISO 13849-1
None
Width sensor
0mm
Type of actuation
Metallic Target
Supply voltage
15 .. 30V
Height of sensor
0mm
Length of sensor
74.1mm
Diameter sensor
30mm
Category according to EN 954-1
B
Compression-resistant
Type of interface
None
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
