Details
- •Sensors
- •Light scanner with background masking
- •1 KOM
- •EATON
Technical specifications
Max. output current100mA
Voltage typeDC
Number of protected contact energized outputs0
Type of interface for safety communicationOther
Number of protected semiconductor outputs0
Type of switching outputPNP/NPN
Type of switch functionOther
Adjustment range0 - 1500mm
Ambient temperature-35 - 55°C
Switching frequency0Hz
Suitable for safety functionsNo
Number of semiconductor outputs with signalling function2
With time functionNo
Material housingPlastic
Number of contact energized outputs with signalling function0
Type of electric connectionOther
Rated control supply voltage Us at AC 50HZ0 - 0V
Explosion safety category for dustNone
Material of optical surfacePlastic
Explosion safety category for gasNone
Construction type housingCuboid
Operation agent-safety classSafety class 2
Rated control supply voltage Us at DC18 - 30V
Type of lightInfrared light
Rated control supply voltage Us at AC 60HZ0 - 0V
Transmission range of the safety field0m
Switching voltage of OSSD at state "high"30V
Light dot0mm²
Laser protection classNone
Degree of protection (IP)IP67
Material of cable sheathOther
Min. reflector distance0mm
With monitoring function downstream switching devicesNo
Max. output current at protected output0mA
Pre failure noticeNo
With restart blockageNo
Analogue output 0 V ... 10 VNo
Wavelength of the sensor0nm
Response time15ms
Setting procedureOther
With reflectorNo
Diameter sensor0mm
Analogue output -10 V ... +10 VNo
Width sensor43mm
With communication interface EthernetNo
Length of sensor166mm
With communication interface RS-232No
Height of sensor59mm
AWG-number0
With communication interface INTERBUSNo
With communication interface CANOpenNo
With other analogue outputNo
Sensing modeDark switching
With communication interface AS-InterfaceNo
Analogue output 4 mA ... 20 mANo
With communication interface DeviceNetNo
Analogue output 0 mA ... 20 mANo
With communication interface SSINo
With communication interface SSDNo
With communication interface analogueNo
With communication interface PROFIBUSNo
Max. switching distance1800mm
With communication interface RS-422No
With communication interface RS-485No
Rated switching distance1500mm
Operating distance0 - 0mm
TriangulationBackground fade-out
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

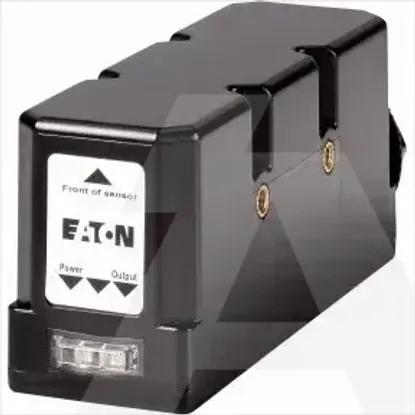

E67-LRDP150-HDD
