Details
- •Sensors
- •Reflection light barrier
- •1 KOM
- •EATON
Technical specifications
Suitable for safety functionsNo
With time functionNo
Voltage typeDC
Ambient temperature25 - 55°C
Max. output current100mA
Material housingPlastic
Type of electric connectionCable
Type of lightPolarity free red light
Type of switch functionOther
Number of protected semiconductor outputs0
Min. reflector distance0mm
Rated control supply voltage Us at AC 60HZ0 - 0V
Switching frequency500Hz
Max. output current at protected output0mA
Number of contact energized outputs with signalling function0
Rated control supply voltage Us at DC10 - 30V
Explosion safety category for gasNone
Number of protected contact energized outputs0
Laser protection classNone
Explosion safety category for dustNone
Setting procedureOther
Number of semiconductor outputs with signalling function1
Rated control supply voltage Us at AC 50HZ0 - 0V
Construction type housingCuboid
Light dot0mm²
With monitoring function downstream switching devicesNo
With restart blockageNo
Response time1ms
Type of switching outputPNP
Analogue output 4 mA ... 20 mANo
Material of optical surfacePlastic
Switching voltage of OSSD at state "high"30V
Analogue output 0 V ... 10 VNo
Pre failure noticeNo
Analogue output 0 mA ... 20 mANo
Transmission range of the safety field0m
Degree of protection (IP)IP66
Wavelength of the sensor660nm
Analogue output -10 V ... +10 VNo
With communication interface INTERBUSNo
With communication interface AS-InterfaceNo
Width sensor12mm
Diameter sensor0mm
With communication interface PROFIBUSNo
With communication interface RS-422No
With communication interface RS-232No
With communication interface CANOpenNo
Height of sensor32mm
With communication interface analogueNo
With communication interface EthernetNo
With communication interface SSDNo
With communication interface RS-485No
With communication interface DeviceNetNo
With reflectorNo
Degree of protection (NEMA)Other
Length of sensor20mm
With communication interface SSINo
Rated switching distance800mm
With other analogue outputNo
Max. switching distance800mm
Sensing modeLight-/dark switching
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

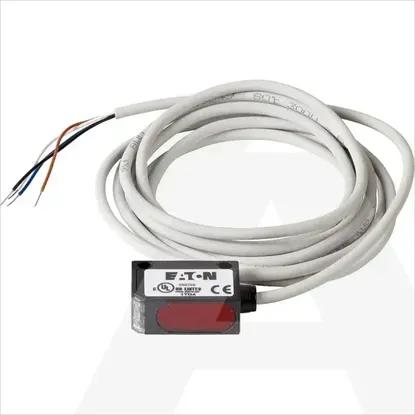

E71-COP-CA
