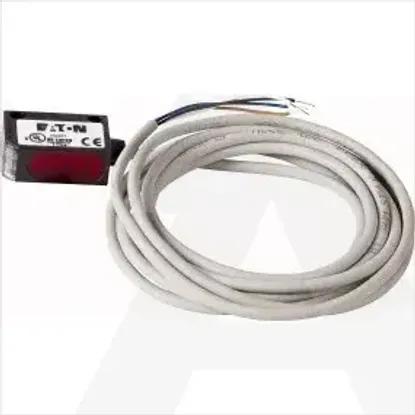

Details
- •Sensors
- •Light scanner, energetic
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
Material housingPlastic
Max. output current100mA
Suitable for safety functionsNo
With time functionNo
Switching frequency500Hz
Type of switch functionOther
Explosion safety category for dustNone
Setting procedureOther
Type of lightPolarity free red light
Number of protected semiconductor outputs0
Ambient temperature25 - 55°C
Rated control supply voltage Us at DC10 - 30V
Type of switching outputNPN
Type of electric connectionCable
Construction type housingCuboid
Rated control supply voltage Us at AC 50HZ0 - 0V
Number of contact energized outputs with signalling function0
Rated control supply voltage Us at AC 60HZ0 - 0V
Explosion safety category for gasNone
Number of semiconductor outputs with signalling function1
Number of protected contact energized outputs0
Max. output current at protected output0mA
With monitoring function downstream switching devicesNo
Light dot0mm²
Min. reflector distance0mm
With restart blockageNo
Response time1ms
Switching voltage of OSSD at state "high"30V
Analogue output 0 mA ... 20 mANo
Degree of protection (IP)IP67
Analogue output -10 V ... +10 VNo
Analogue output 0 V ... 10 VNo
Transmission range of the safety field0m
Material of optical surfacePlastic
Wavelength of the sensor660nm
Analogue output 4 mA ... 20 mANo
With communication interface CANOpenNo
Width sensor12mm
Height of sensor32mm
With communication interface INTERBUSNo
AWG-number0
With communication interface analogueNo
With communication interface AS-InterfaceNo
With communication interface PROFIBUSNo
With communication interface EthernetNo
With communication interface DeviceNetNo
Pre failure noticeNo
Diameter sensor0mm
With communication interface SSDNo
With communication interface RS-422No
Degree of protection (NEMA)4
With communication interface SSINo
With communication interface RS-485No
Operating distance0 - 100mm
Max. switching distance100mm
With communication interface RS-232No
With reflectorNo
Sensing modeLight-/dark switching
With other analogue outputNo
Length of sensor20mm
